Rod pour outil de PCB
Rod pour outil de PCB
1, Densité : 14,0-14,9 g/cm3
2, Composition: Co WC, WC TiC TaC Co
3, Surface : surface de frittage, la surface du sol.
4, peuvent être con?us conformément aux exigences du client.
Divers types et dimensions de forage & coupeur de fraisage & PCB.
|
Grade |
Co |
Grain Size |
Hardness |
Density |
Toughness |
|
YG06CF |
6 |
0.8-1 |
92.2 |
14.80 |
290 |
|
YG07X |
7 |
1-2 |
91.2 |
14.75 |
310 |
|
YG10UF |
10 |
0.6-0.8 |
91.7 |
14.40 |
400 |
|
YG05UF |
5 |
<0.6 |
94.0 |
14.80 |
350 |
|
YG06UF |
6 |
<0.6 |
94.5 |
14.65 |
360 |
|
YG07UF |
7 |
<0.6 |
93.0 |
14.65 |
380 |
|
YG10UF |
10 |
<0.6 |
92.3 |
14.35 |
350 |
|
YG06CF |
6 |
0.8-1 |
92.2 |
14.85 |
350 |
|
YG10UF |
10 |
0.6-0.8 |
91.8 |
14.40 |
350 |
|
YG12UF |
12 |
0.6-0.8 |
91.3 |
14.08 |
370 |
|
YG12UF |
12 |
<0.6 |
92.4 |
14.15 |
400 |

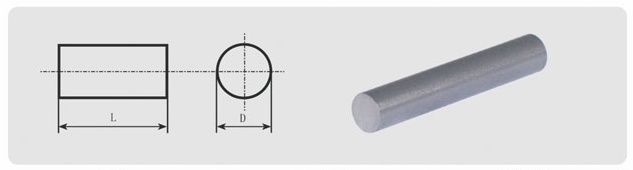

Tiges de carbure de tungstène pour les outils de PCB
|
||
| Specification | Tolerance of diamete(mm) | Tolerance of length(mm) |
|---|---|---|
| dia3.25x38.5 | -/+0.05 | -/+0.2 |
| dia4.0x38.5 | -/+0.05 | -/+0.2 |
| dia4.5x38.5 | -/+0.05 | -/+0.2 |
| dia5.0x38.5 | -/+0.05 | -/+0.2 |
| dia5.5x38.5 | -/+0.05 | -/+0.2 |
| dia6.5x38.5 | -/+0.05 | -/+0.2 |
| dia3.5x12.8 | -/+0.1 | -/+0.2 |
| dia4.0x12.8 | -/+0.1 | -/+0.2 |
| dia4.5x12.8 | -/+0.1 | -/+0.2 |
| dia5.0x12.8 | -/+0.1 | -/+0.2 |
| dia5.5x12.8 | -/+0.1 | -/+0.2 |
| dia6.0x12.8 | -/+0.1 | -/+0.2 |
| dia6.5x12.8 | -/+0.1 | -/+0.2 |
| dia6.85x12.8 | -/+0.1 | -/+0.2 |
| dia7.0x12.8 | -/+0.1 | -/+0.2 |
| dia3.26x14.0 | -/+0.05 | -/+0.2 |
| dia3.05x12.7 | -/+0.05 | -/+0.2 |
| dia3.05x13.1 | -/+0.05 | -/+0.2 |
| dia3.05x38.6 | -/+0.05 | -/+0.2 |
| dia3.05x14.1 | -/+0.05 | -/+0.2 |
| dia3.05x14.6 | -/+0.05 | -/+0.2 |
| dia3.05x15.1 | -/+0.05 | -/+0.2 |
| dia3.05x15.6 | -/+0.05 | -/+0.2 |
Note
1. La saturation magnétique de toutes les qualités de carbure cimenté est : 135-160 UEM/g.
2. Taille de grain WC: amende = 1.4μm ~ 2.5μm, Medium = 2.5μm ~ 5.0μm, Coarse≥5.0μm.
3. Les notes spécifiques peuvent être con?us conformément aux exigences du client.
