Vareta para ferramenta de PCB
Vareta para ferramenta de PCB
1, Densidade: 14,9 14,0 g/cm3
2, Composi??o: WC Co, WC TiC TaC Co
3, Superfície: superfície sinteriza??o, a superfície do solo.
4, podem ser projetados de acordo com as necessidades do cliente.
Vários tipos e dimens?es de broca & moagem cortador & PCB.
|
Grade |
Co |
Grain Size |
Hardness |
Density |
Toughness |
|
YG06CF |
6 |
0.8-1 |
92.2 |
14.80 |
290 |
|
YG07X |
7 |
1-2 |
91.2 |
14.75 |
310 |
|
YG10UF |
10 |
0.6-0.8 |
91.7 |
14.40 |
400 |
|
YG05UF |
5 |
<0.6 |
94.0 |
14.80 |
350 |
|
YG06UF |
6 |
<0.6 |
94.5 |
14.65 |
360 |
|
YG07UF |
7 |
<0.6 |
93.0 |
14.65 |
380 |
|
YG10UF |
10 |
<0.6 |
92.3 |
14.35 |
350 |
|
YG06CF |
6 |
0.8-1 |
92.2 |
14.85 |
350 |
|
YG10UF |
10 |
0.6-0.8 |
91.8 |
14.40 |
350 |
|
YG12UF |
12 |
0.6-0.8 |
91.3 |
14.08 |
370 |
|
YG12UF |
12 |
<0.6 |
92.4 |
14.15 |
400 |

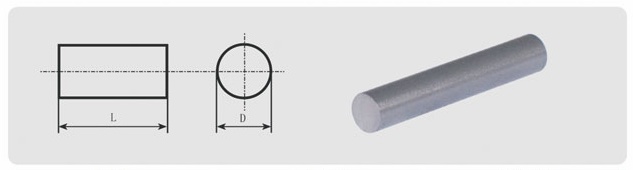

Barras de carboneto de tungsténio para ferramentas de PCB
|
||
| Specification | Tolerance of diamete(mm) | Tolerance of length(mm) |
|---|---|---|
| dia3.25x38.5 | -/+0.05 | -/+0.2 |
| dia4.0x38.5 | -/+0.05 | -/+0.2 |
| dia4.5x38.5 | -/+0.05 | -/+0.2 |
| dia5.0x38.5 | -/+0.05 | -/+0.2 |
| dia5.5x38.5 | -/+0.05 | -/+0.2 |
| dia6.5x38.5 | -/+0.05 | -/+0.2 |
| dia3.5x12.8 | -/+0.1 | -/+0.2 |
| dia4.0x12.8 | -/+0.1 | -/+0.2 |
| dia4.5x12.8 | -/+0.1 | -/+0.2 |
| dia5.0x12.8 | -/+0.1 | -/+0.2 |
| dia5.5x12.8 | -/+0.1 | -/+0.2 |
| dia6.0x12.8 | -/+0.1 | -/+0.2 |
| dia6.5x12.8 | -/+0.1 | -/+0.2 |
| dia6.85x12.8 | -/+0.1 | -/+0.2 |
| dia7.0x12.8 | -/+0.1 | -/+0.2 |
| dia3.26x14.0 | -/+0.05 | -/+0.2 |
| dia3.05x12.7 | -/+0.05 | -/+0.2 |
| dia3.05x13.1 | -/+0.05 | -/+0.2 |
| dia3.05x38.6 | -/+0.05 | -/+0.2 |
| dia3.05x14.1 | -/+0.05 | -/+0.2 |
| dia3.05x14.6 | -/+0.05 | -/+0.2 |
| dia3.05x15.1 | -/+0.05 | -/+0.2 |
| dia3.05x15.6 | -/+0.05 | -/+0.2 |
Nota
1. A satura??o magnética todas as qualidades de carboneto cimentado é: 135-160 UEM/g.
2. Tamanho de gr?o WC: multa = 1.4μm ~ 2.5μm, médio = 2.5μm ~ 5.0μm, Coarse≥5.0μm.
3. As qualidades específicas podem ser projetadas de acordo com as necessidades do cliente.
