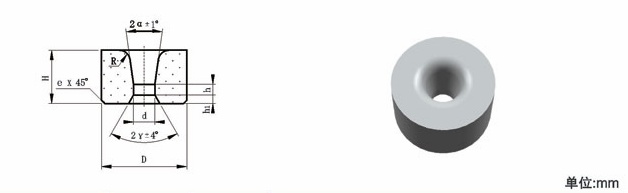

Tip S13 mor desen

Type	D x H (mm)	2α	d(mm)

S13-0201716-d	20 x 17	16^o	1.8, 2.0, 2.3, 2.8, 3.3, 3.8, 4.2, 4.7, 5.2, 5.7
S13-0281820-d	28 x 18	20^o	5.7, 6.0, 6.3, 6.6, 7.0, 7.3, 7.7, 8.2, 8.6
S13-0282014-d	28 x 20	14^o	3.7, 3.9, 4.1, 4.4, 4.7, 5.0, 5.3, 5.5, 5.7, 6.0, 6.3, 6.6, 6.7, 7.0, 7.5, 7.7
S13-0282020-d	28 x 20	20^o	4.7, 5.0, 5.2, 5.4, 5.7, 6.0, 6.2, 6.5, 6.7, 7.0, 7.3, 7.7, 8.2, 8.3, 9.1, 9.6
S13-0302114-d	30 x 21	14^o	3.7, 3.9, 4.1, 4.3, 4.6, 4.7, 5.0, 5.3, 5.6, 5.7, 6.0, 6.3, 6.6, 6.7, 7.0,7.3, 7.5, 7.7, 8.0, 8.6, 9.6
S13-0302119-d	30 x 21	19^o	3.7, 3.9, 4.1, 4.3, 4.6, 4.7, 5.0, 5.3, 5.6, 5.7, 6.0, 6.5, 6.7, 7.0,7.3, 7.7, 8.1, 8.6, 9.0, 9.6
S13-0332316-d	33 x 23	16^o	10.5, 11.5, 12.0, 12.5
S13-0352420-d	35 x 24	20^o	9.6, 10.1, 10.5, 11.5
S13-0382420-d	38 x 24	20^o	10.5, 11.5, 12.5, 13.5, 14.5
S13-0402516-d	40 x 25	16^o	10.5, 11.5, 12.5, 13.5, 14.5, 15.5
S13-0402519-d	40 x 25	19^o	10.5, 11.5, 12.5, 13.5, 14.5, 15.5
S13-0502816-d	50 x 28	16^o	16.5, 17.5, 18.5, 19.5, 20.5, 21.5, 22.5, 23.5, 24.5
S13-0502819-d	50 x 28	19^o	16.5, 17.5, 18.5, 19.5, 20.5, 21.5, 22.5, 23.5, 24.5
S13-0603519-d	60 x 35	19^o	25.5, 26.5, 27.5, 28.5, 29.5, 30.5, 31.5, 32.5, 33.5, 34.5
S13-0653519-d	65 x 35	19^o	29.5, 30.5, 31.5, 32.5, 33.5
S13-0753518-d	75 x 35	18^o	41.5, 42.5, 43.5
S13-0753520-d	75 x 35	20^o	34.5, 35.5, 36.5, 37.5, 38.5, 39.5, 40.5
S13-0803520-d	80 x 35	20^o	41.5, 42.5, 43.5, 44.5, 45.0
S13-0853520-d	85 x 35	20^o	41.5, 42.5, 43.5, 44.5, 45.0
S13-0903520-d	90 x 35	20^o	45.0, 46.0, 47.0, 48.0, 49.0, 50.0, 51.0, 52.0, 53.0, 54.0, 55.0, 56.0, 57.0, 58.0
S13-0953520-d	95 x 35	20^o	53.0, 54.0, 55.0, 56.0, 57.0
S13-1003520-d	100 x 35	20^o	47.0, 48.0, 49.0, 50.0, 51.0, 52.0, 53.0, 54.0, 55.0, 56.0, 57.0
S13-1104020-d	110 x 40	20^o	59.0, 60.0, 61.0, 61.5, 62.5, 63.5, 64.0, 65.0, 66.0, 67.0, 68.0, 69.0, 70.0
S13-1405020-d	140 x 50	20^o	71.0, 72.0, 73.0, 74.0, 75.0, 76.0, 77.0, 78.0, 79.0, 80.0, 81.5, 82.5, 83.5, 84.0
