Bit di data mining in carburo di tungsteno

Tipo di bit data mining K21

Tipo di bit data mining K21

Tipo di bit data mining K21

Tipo di bit data mining K21

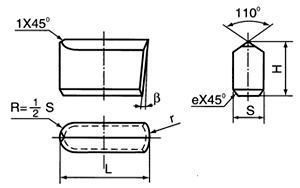

Tungsten carbide Mining bits type K21

mm

Type	Dimension						Note
Type	L	H	S	r	β	e	Note
K2114	14.0	12.0	8.0	20.0	3^o	1.0	/
K21-81001	15.0	14.0		20.0	2^o		G81157
K2116	16.0	12.0		22.0	3^o		/
K21-87003	17.0	18.0	12.0	20.0	2o30'	1.5	G87263
K2118	18.0	14.0	10.0	22.5	3^o	1.0	/
K2120	20.0	18.0		28.5		1.0	/
K2126	26.0	16.0		35.0		1.5	/
K2128	28.0			35.0			/
K2130	30.0		12.0	38.0			/
K2132	32.0			44.5		2.0	/
K2135	35.0			51.0			/
K2139	39.0	18.0	14.0	57.5			/
K2143	43.0	20.0	14.0	63.5			/
