Carbone taglio bit

Carbone taglio bit digitare M25

Carbone taglio bit digitare M25 Carbone taglio bit digitare M25 Carbone taglio bit digitare M25
Coal cutting bits type M25

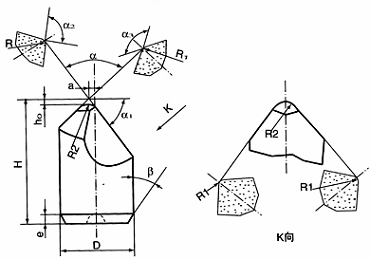

Tungsten Carbide Tips Type M25 Tungsten Carbide Tips Type M25

mm

Type
Dimension
Note
D
H
R
R1
h0
α
α1
α2
α3
β
a
e
M25-86002
12.5
25.0
1.5
3.0
1.0
80o
35o
110o
120o
45o
1.0
1.0
G86278
M2513
13.0
24.0
/
55o
G85034
M2513A
2.0
5.0
1.0
60o
100o
90o
60o
0.5
6.0
G86277
M2513B
1.1
55o
62o30'
/
G90055
M2514
14.0
1.0
60o
60o
0.5
G85035
