Wolframcarbid minedrift bits

Minedrift bits type K23

Minedrift bits type K23

Minedrift bits type K23

Minedrift bits type K23

Tungsten carbide Mining bits type K23

mm

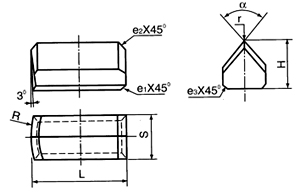

Type	Dimension									Note
Type	L	H	S	R	α	γ	e1	e2	e3	Note
K23-92001	11.0	6.5	7.8	19.1	80^o	0.8	0.4	0.8	0.8	G92509
K23-85001	12.0									G85237
K23-85002	13.5									G85236
K23-85003	15.1									G85235
K23-85004	16.7	14.3	7.7		70^o					G85233
K23-85005	18.3	14.3	7.7		70^o		/			G85234
K23-82001	28.5	22.0	13.0	31.0	110^o	/	/	2.0	0.5	G82023
K23-84001	29.0	25.4		38.0		/	/		1.0	G84131
K23-83001	34.7	22.0		45.0		/	/		1.5	G83151
K23-84002	35.0	25.4	14.0	45.0		/	/		0.5	G84240
K23-72001	42.0	20.0	12.0	50.0	70^o	0.2	1.5		1.5	G2076
