Wolfraamcarbide bevestigingspunten tips

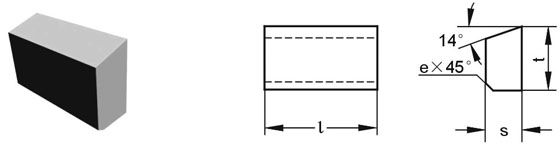

Brazed tips type A1
|
|
Type
|
Dimension(mm)
|
Approx unit weight(g)
|
||||||
|
l
|
t
|
s
|
e
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
A106
|
6.0
|
5.0
|
2.5
|
/
|
1.1
|
1.1
|
1.0
|
0.9
|
|
A108
|
8.0
|
7.0
|
3.0
|
/
|
2.6
|
2.5
|
2.1
|
1.9
|
|
A110
|
10.0
|
6.0
|
3.5
|
0.8
|
2.9
|
2.8
|
2.4
|
2.2
|
|
A112
|
12.0
|
10.0
|
4.0
|
0.8
|
6.8
|
6.6
|
5.7
|
5.2
|
|
A114
|
14.0
|
12.0
|
4.5
|
0.8
|
10.7
|
10.5
|
8.9
|
8.2
|
|
A116
|
16.0
|
10.0
|
5.5
|
0.8
|
12.3
|
12.0
|
10.5
|
9.8
|
|
A118
|
18.0
|
12.0
|
7.0
|
0.8
|
21.3
|
20.8
|
17.5
|
16.3
|
|
A118A
|
18.0
|
16.0
|
6.0
|
0.8
|
24.7
|
24.3
|
21.0
|
19.7
|
|
A120
|
20.0
|
12.0
|
7.0
|
0.8
|
23.2
|
22.8
|
20.0
|
18.6
|
|
A122
|
22.0
|
15.0
|
8.5
|
0.8
|
39.2
|
38.5
|
33.0
|
30.6
|
|
A122A
|
22.0
|
18.0
|
7.0
|
0.8
|
39.2
|
38.5
|
32.8
|
30.5
|
|
A125
|
25.0
|
15.0
|
8.5
|
0.8
|
44.5
|
43.7
|
36.5
|
34.0
|
|
A125A
|
25.0
|
20.0
|
10.0
|
0.8
|
71.0
|
69.8
|
58.0
|
53.8
|
|
A130
|
30.0
|
16.0
|
10.0
|
0.8
|
66.4
|
65.3
|
56.5
|
51.7
|
|
A136
|
36.0
|
20.0
|
10.0
|
0.8
|
98.2
|
96.8
|
81.0
|
75.2
|
|
A140
|
40.0
|
18.0
|
10.5
|
1.2
|
105.6
|
103.8
|
88.0
|
81.7
|
|
A150
|
50.0
|
20.0
|
10.5
|
1.2
|
149.0
|
146.0
|
125.0
|
116.0
|
|
A160
|
60.0
|
22.0
|
10.5
|
1.2
|
197.0
|
193.0
|
168.0
|
156.0
|
|
A170
|
70.0
|
25.0
|
12.0
|
1.2
|
298.0
|
293.0
|
257.0
|
239.0
|
