Die Rohlinge für Sechskantmuttern

Die blanks for hexagonal nuts

Type	Dimension							Remark

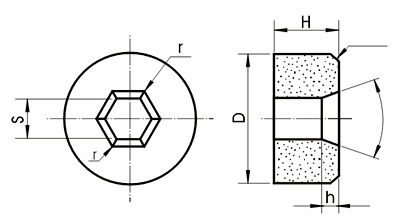

Type	S	D	H	h	e	α	r	Remark
BF0922509AG	9.2	25.5	9.0	1.5	1.5	60^o	0.5	G86160
BF-91005	11.0	30.5	8.5	1.0	1.0	90^o	0.2	G91018
BF1162509AG	11.7	25.5	9.0	1.5	1.0	80^o	0.4	G89021
BF1193011AG	12.0	30.5	11.2	1.5	1.0	60^o	0.4	G97058
BF-91001	12.2	30.5	10.5	1.0	1.0	90^o	0.2	G91022
BF1303011AG	13.0	30.5	11.2	1.0	1.0	60^o	0.4	G86142
BF1343012AG	13.4	30.5	12.2	1.0	1.0	60^o	0.4	G86140
BF-91006	14.0	35.5	11.3	1.5	1.0	90^o	0.2	G91019
BF-91002	15.2	35.5	12.5	1.5	1.0	90^o	0.2	G91023
BF1623511AG	16.2	35.5	11.8	1.5	1.5	60^o	0.5	G86161
BF1723412AG	17.2	34.5	12.5	1.5	1.5	80^o	0.4	G89022
BF-91003	17.2	34.5	16.0	1.5	1.0	90^o	0.2	G91024
BF1773414AG	17.7	34.5	14.5	1.5	1.0	80^o	0.4	G89041
BF1783917AG	17.8	39.0	17.0	2.0	/	60^o	0.5	G88107
BF1784315AG	17.9	43.5	15.2	1.5	1.0	60^o	0.4	G86143
BF1803917A	18.0	39.0	17.0	2.0	/	60^o	0.5	G88108
BF1834316AG	18.4	43.5	16.2	1.5	1.0	60^o	0.4	G86141
BF-91008	19.9	46.5	17.2	1.5	1.0	90^o	0.2	G91021
BF-91004	20.2	46.5	18.2	1.5	1.0	90^o	0.2	G91025
BF2084646AG	20.9	46.5	16.2	1.5	1.0	60^o	0.4	G87049
BF2134617AG	21.4	46.5	17.2	1.5	1.0	60^o	0.4	G87050
BF2275018AG	22.8	50.5	18.2	1.5	1.0	60^o	0.4	G86139
BF2305019AG	23.1	50.5	19.2	1.5	1.0	60^o	0.4	G86138
BF2575520AG	25.8	55.5	20.3	1.5	1.0	60^o	0.4	G87053
BF2605521AG	26.1	55.5	21.2	1.5	1.0	60^o	0.4	G87054
BF-86017	28.6	60.5	23.0	2.0	2.0	30^o	0.5	G86189
BF-86016	29.1	60.5	23.0	2.0	2.0	30^o	0.5	G86188
BF3006025AG	30.0	60.5	25.0	3.0	1.5	80^o	0.4	G89023
BF3086025AG	30.8	60.5	25.0	3.0	2.0	80^o	0.4	G89033
BF3126027AG	31.2	60.5	27.5	3.0	2.5	80^o	0.4	G89042
BF3126029AG	31.2	60.5	29.0	2.0	2.0	60^o	0.5	G90063
BF3156025AG	31.5	60.5	25.0	2.0	2.0	60^o	0.5	G90064
BF3316525AG	33.2	65.5	25.0	3.0	2.5	80^o	0.4	G89024
BF3406525AG	34.0	65.5	25.0	3.0	2.5	80^o	0.4	G89034
BF3427031AG	34.2	70.5	31.0	2.0	2.0	30^o	0.5	G86164
BF3466527AG	34.6	65.5	27.5	3.0	2.5	80^o	0.4	G89043
BF3497031AG	34.9	70.5	31.0	2.0	2.0	30^o	0.5	G86157
